Used Textile Machinery

Toyoda Roving and Cherry Hara Draw Frames


Machine Details

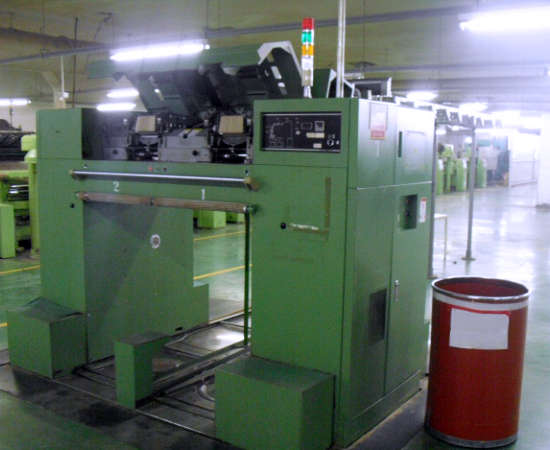

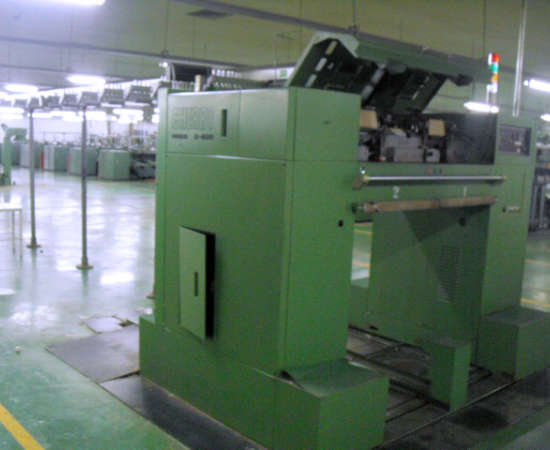

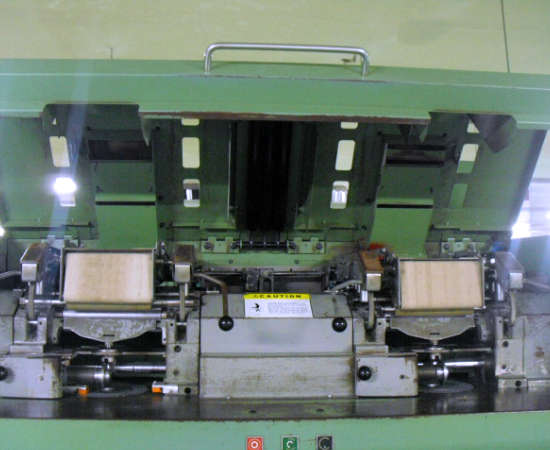

DRAW FRAMES

MODEL: D-600 2 SETS

YEAR: 1995, 8 Doublings x 2 Row Creel

1 Head x 2 Delivery, Drafting Rollers 5-Over-4 with

Pressure Bar for Cotton, Can Size 20 x 45″,

Delivery Speed: Max. 600m/min., Auto-Can-Changer.

With sufficient sliver cans

MODEL: DX500 3 SETS

YEAR: 1989/90, 8 Doublings x 2 Row Creel

1 Head x 2 Delivery, Drafting Rollers 5-Over-4 with

Pressure Bar for Cotton, Can Size 20 x 45″,

Delivery Speed: Max. 500m/min., Auto-Can-Changer.

With sufficient sliver cans



ROVING

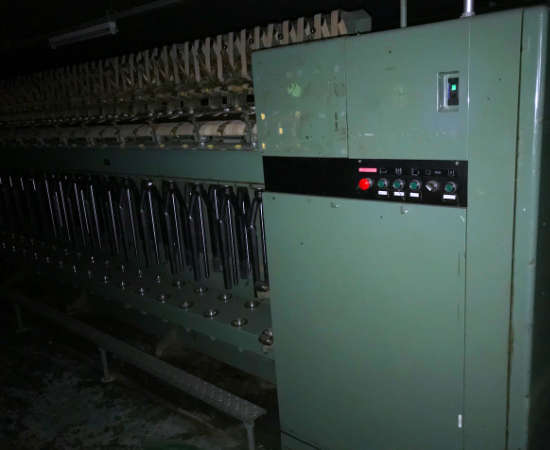

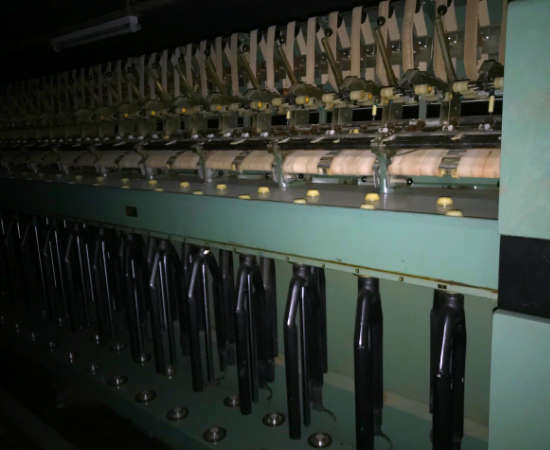

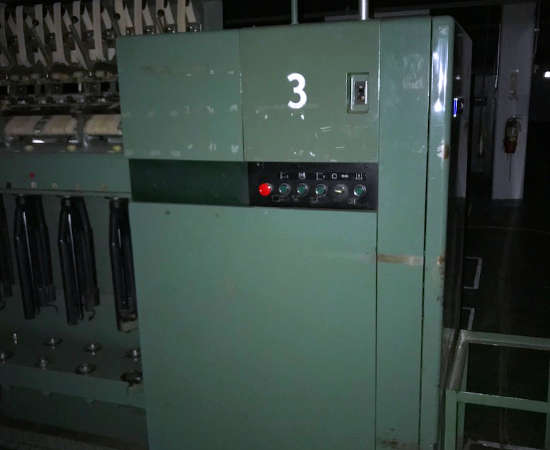

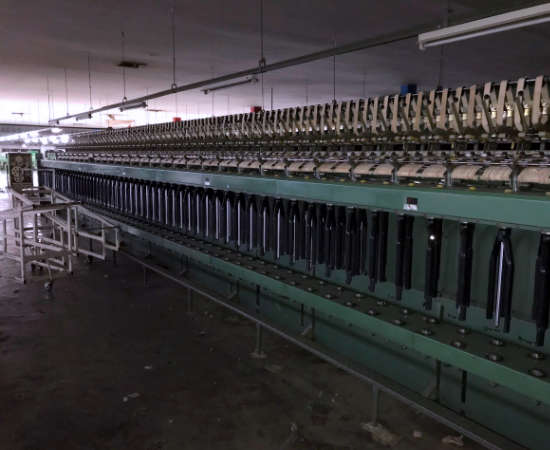

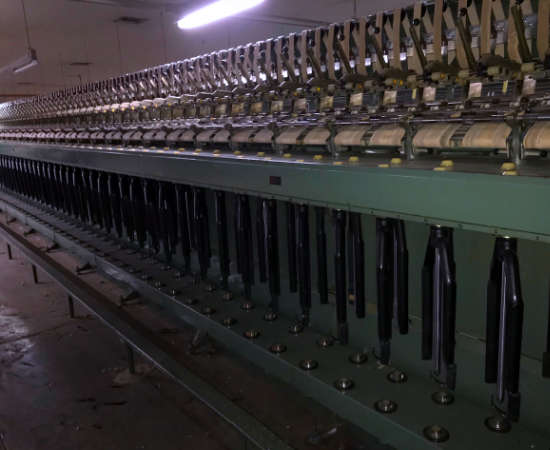

MODEL: TOYODA FL-16 High-Speed Roving-Simplex Frames, Total 4 Sets

Year 1982 (2), 1987 (1),120-Spindles

Year 1985 (1) 96-Spindles

Staff: 440mm, No. of Spindles per Staff: 4,

Lift x Full bobbin dia.: 406mm (16″) x 152mm (6″),

Easier doffing device, Cotton 100% for Micronair 4-5d,

28-30mm fibre length, Yarn Count Ne 30-80s, Combed or Carded,

4-Roller Double Apron D-Type Drafting System,

Weighting Arm SKF PK1500-001938, Cradle SKF OH514-110,

Feeding Can 20 x 45″ Size, No. of Feed Rollers Stainless 6-Line,

Positive Intermittent revolving clearer with comb for top and bottom rollers,

Mechanical Flyer speed 950rpm, Flyer: SL slitless type, Stainless Presser,

Winding up tension compensating device, Irregular roving preventing device,

Package Shoulder collapse preventing device.

Inclusive of 2,000pcs roving bobbins and 120pcs sliver cans each machine.
